Linear Motion – Single Rail Stages – SRS-008-04-020-01V

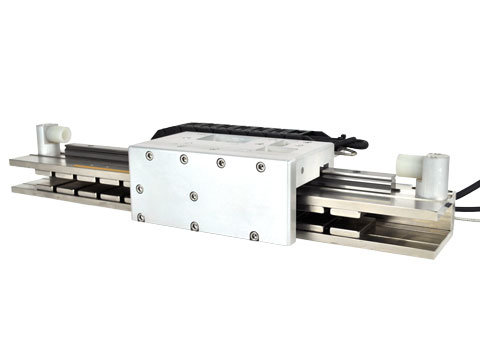

Santa Clarita, CA – Linear Motion Control – The SRS-008-04-020-01V vacuum compatible single rail positioning stage uses a brushless linear motor to generate a continuous/peak force of 20.6 lbs [91.6 N]/61.8 lbs [275 N] with a total stroke length of 8.3 in [210 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by a rigid recirculating ball linear bearing. There are also provisions that allow customer cables to be routed within the cable carrier. This single rail positioning stage has been manufactured using low-outgassing materials as selected by NASA in order to make it vacuum compatible. It has end-of-travel bumper stops. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.For a detailed description of all the considerations taken when manufacturing a vacuum compatible system, please click here.
 |
| Stroke |
8.3 in |
210 mm |
| Encoder Resolution |
1.0 micron |
| Bearing Type |
Recirculating Ball |
| Moving Mass |
3.5 lbs |
1.6 kg |
| Total Mass |
18.0 lbs |
8.2 kg |
| Resistance @ 20C |
8.1 ohms |
| Inductance @ 20C |
6.0 mH |
| Electrical Time Constant |
0.70 msec |
| Motor Constant |
2.1 lbs/√watt |
9.4 N/√watt |
| Force Constant |
6.1 lbs/amp |
27.3 N/amp |
| Back EMF |
0.80 V/ips |
31.5 V/m/sec |
| Force @ 100% Duty |
20.6 lbs |
91.6 N |
| Power @ 100% Duty |
95.0 watts |
| Current @ 100% Duty |
3.4 amps |
| Force @ 10% Duty |
61.8 lbs |
275 N |
| Power @ 10% Duty |
846 watts |
For drawing go to https://www.h2wtech.com/pdf/2014-05-21-22-56-32.PDF
